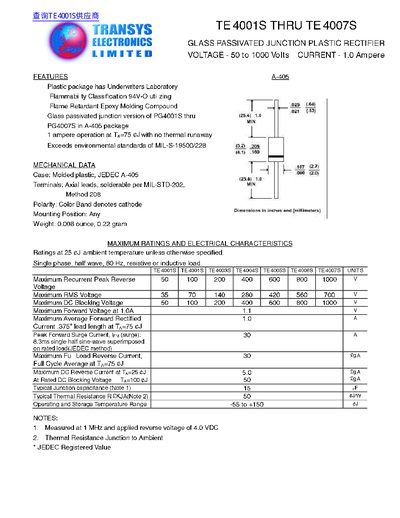

RINSYS TE4001S-TE4007S Glass Passivated Junction Plastic Rectifier Datasheet

About this manual

This document is a datasheet for the RINSYS TE4001S through TE4007S series of glass passivated junction plastic rectifiers. These devices are designed as single-phase, half-wave rectifiers with ratings ranging from 50 to 1000 Volts and a current capacity of 1.0 Ampere.

What's inside

• Features
• Mechanical Data
• Maximum Ratings and Electrical Characteristics
• Rating and Characteristic Curves

Specifications

Frequently asked questions

What is the maximum forward voltage at 1.0A for these rectifiers?

The maximum forward voltage at 1.0A is 1.1 V.

What are the operating and storage temperature ranges?

The device operates and stores between -55 to +150 C.

What is the typical thermal resistance from junction to ambient?

The typical thermal resistance is 50 C/W.
