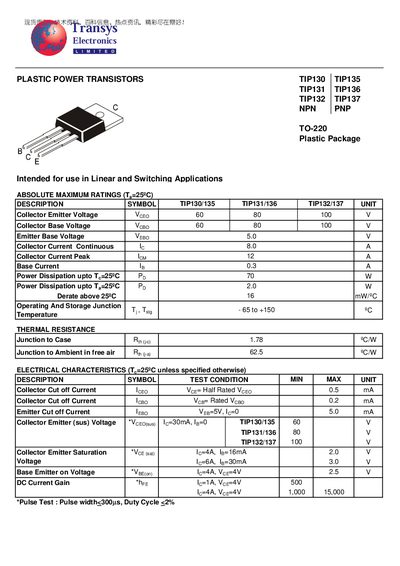

This is a technical datasheet of TIP130/135/131/136/132/137 NPN PNP TO-220 plastic package power transistors.
The TIP130/131/132/135/136/137 series are plastic power transistors offered in TO-220 packages for linear and switching applications. The series includes NPN (TIP130, TIP131, TIP132) and PNP (TIP135, TIP136, TIP137) devices with a range of voltage and current ratings.
The document provides absolute maximum ratings, electrical characteristics such as collector‑emitter voltage and continuous collector current, thermal resistance data, pin configuration, and detailed packaging information including dimensions and pack sizes.
| Collector‑Emitter Voltage (VCEO) TIP130 | 60 V |
|---|---|
| Collector‑Emitter Voltage (VCEO) TIP131 | 80 V |
| Collector‑Emitter Voltage (VCEO) TIP132 | 100 V |
| Continuous Collector Current (IC) | 8.0 A |
| Power Dissipation (PD) | 70 W |
| Junction‑to‑Case Thermal Resistance (RθJC) | 1.78 °C/W |
| Pin Configuration | 1. Base, 2. Collector, 3. Emitter, 4. Collector |
The TIP132 transistor has a maximum collector‑emitter voltage of 100 V.
A standard TO‑220 packaging box contains 200 pieces per polybag.
