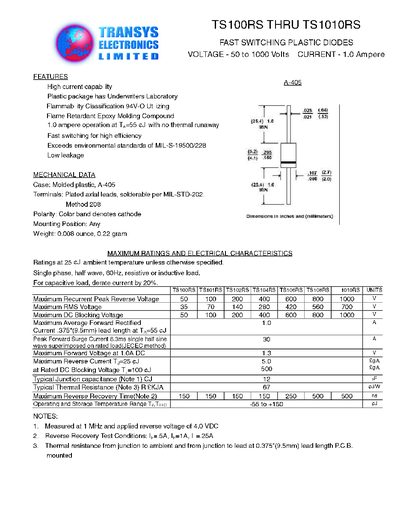

The TS100RS‑TS1010RS series are fast‑switching plastic diodes offered by Transys Electronics Limited. They feature high‑current capability, low leakage, and a flame‑retardant epoxy molding compound, meeting MIL‑S‑19500/228 environmental standards.
The datasheet provides mechanical specifications, maximum electrical ratings such as voltage and current limits, and characteristic curves for reverse recovery, forward surge, and temperature derating. Typical values for junction capacitance, thermal resistance, and reverse recovery time are also listed.
| Voltage rating | 50 V to 1000 V |
|---|---|
| Current rating | 1.0 A |
| Maximum Recurrent Peak Reverse Voltage | up to 1000 V |
| Maximum RMS Voltage | up to 700 V RMS |
| Maximum DC Blocking Voltage | up to 1000 V |
| Maximum Average Forward Rectified Current | 1.0 A |
| Peak Forward Surge Current | 30 A (8.3 ms half‑sine) |
| Maximum Forward Voltage at 1 A DC | 1.3 V |
| Maximum Reverse Current (25 °C) | 5.0 µA |
| Operating Temperature Range | -55 °C to +150 °C |
| Typical Junction Capacitance | 12 pF |
| Typical Thermal Resistance | 67 °C/W |
They are rated for 50 V to 1000 V reverse voltage.
The maximum average forward rectified current is 1.0 A.
They operate from –55 °C up to +150 °C.
Typical junction capacitance is 12 pF.
