1N5928B is a NPN type Schottky diode in the 1N5928 series. It has a rated current of 5A and a rated voltage of 200V. The diode has a short reverse recovery time, low switching loss, high temperature resistance, and radiation resistance. It is widely used in switching power supplies, voltage regulators, electronic loads, etc.

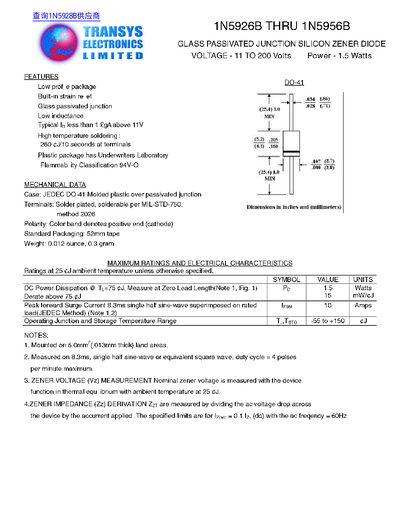

This document is a technical datasheet for the Transys Electronics Limited series of glass passivated junction silicon zener diodes, specifically models 1N5926B through 1N5956B. The devices are rated for a power dissipation of 1.5 Watts and operate within a temperature range of -55 to +150 degrees Celsius.
| DC Power Dissipation | 1.5 Watts |
|---|---|
| Operating Junction Temperature Range | -55 to +150 °C |
| Peak forward Surge Current | 10 Amps |
| Package Type | JEDEC DO-41 Molded plastic |
The maximum DC power dissipation is 1.5 Watts when measured at a zero lead length and 75 °C ambient temperature.
The components are packaged in a 52mm tape.
