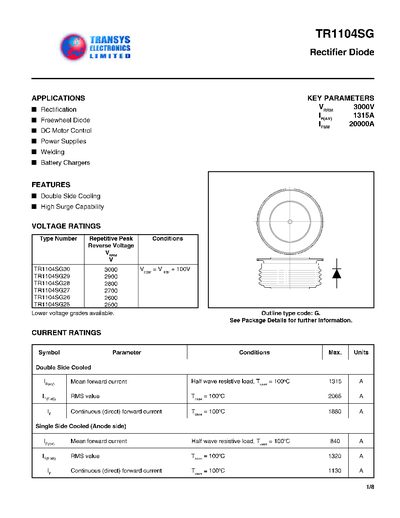

The TR1104SG rectifier diode from Transys Electronics is designed for high‑surge applications such as motor control, power supplies, welding and battery chargers. It features double‑side cooling and a high surge capability, with a reverse voltage rating of 3000 V.
Key electrical specifications include a continuous forward current of 1315 A, RMS forward current of 2065 A, and a non‑repetitive surge forward current of up to 16 kA (10 ms half‑sine). Thermal data provide junction‑to‑case resistance values and a clamping force of 12 kN. The package dimensions are 35 × 1400 mm with a nominal weight of 310 g.
| Reverse Voltage (VRRM) | 3000 V |
|---|---|
| Clamping Force | 12 kN |
| Package Dimensions | 35 × 1400 mm |
| Nominal Weight | 310 g |
The TR1104SG is rated for a reverse voltage of 3000 V.
