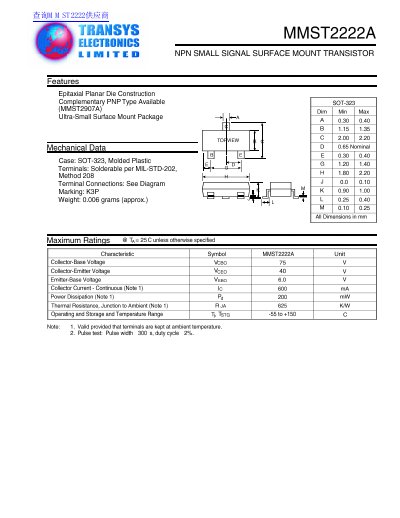

This document is a datasheet for the Transys MMST2222A, an NPN small signal surface mount transistor. The device utilizes an epitaxial planar die construction and is available in a complementary PNP type (MMST2907A) within the SOT-323 molded plastic package. The package dimensions are specified with a height of 0.30 to 0.40 mm and a width of 1.15 to 1.35 mm.
| Package Type | SOT-323 |
|---|---|
| Collector-Emitter Voltage | 40 V |
| Operating Temperature Range | -55 to +150 C |
| Current Gain-Bandwidth Product | 300 MHz |
The device uses an SOT-323 molded plastic package.
Yes, a complementary PNP type is available with the model number MMST2907A.
