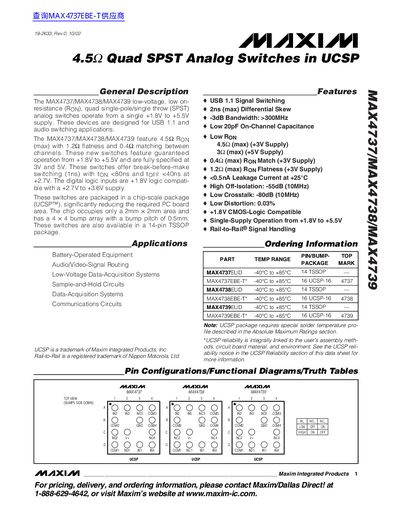

The MAX4737/MAX4738/MAX4739 are low-voltage, low on-resistance (RON) quad single-pole/single throw (SPST) analog switches operating from a single +1.8V to +5.5V supply.
The MAX4737/MAX4738/MAX4739 are low-voltage, low on-resistance (RON) quad single-pole/single-throw (SPST) analog switches designed for USB 1.1 and audio switching applications. These devices operate from a single +1.8V to +5.5V supply and feature a 4.5Ω maximum on-resistance with 1.2Ω flatness and 0.4Ω matching between channels. They are available in a chip-scale package (UCSP) or a 14-pin TSSOP package.
| Supply Voltage Range | +1.8V to +5.5V |
|---|---|
| Leakage Current (Max) | <0.5nA |
| Off-Isolation | -55dB |
| Bandwidth | >300MHz |
The devices operate from a single +1.8V to +5.5V supply.
These devices operate from -40°C to +85°C.
The switches operate from a single supply of +1.8V to +5.5V.
