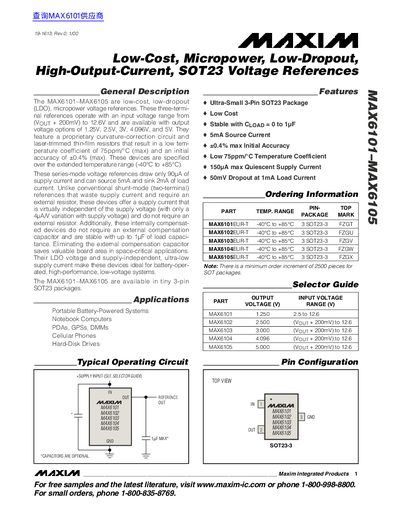

The MAX6101–MAX6105 are low-cost, low-dropout (LDO), micropower voltage references.
The document describes the MAX6101-MAX6105 family as low-cost, micropower, low-dropout (LDO) voltage references. These three-terminal devices operate with an input voltage range from (VOUT + 200mV) to 12.6V and feature output voltages of 1.25V, 2.5V, 3V, 4.096V, and 5V.
| Output Voltage Options | 1.25V, 2.5V, 3V, 4.096V, and 5V |
|---|---|
| Package Type | 3-Pin SOT23 |
| Temperature Coefficient (Max) | 75ppm/°C |
| Initial Accuracy (Max) | +0.4% |
| Operating Temperature Range | -40°C to +85°C |
| Quiescent Supply Current (Max) | 150µA |
| Source Current | 5mA |
The maximum quiescent supply current is 150µA.
No, these internally compensated devices do not require an external compensation capacitor and are stable with up to 1pF of load capacitance.
The dropout voltage is a maximum of 200mV when the output current is 1mA.
