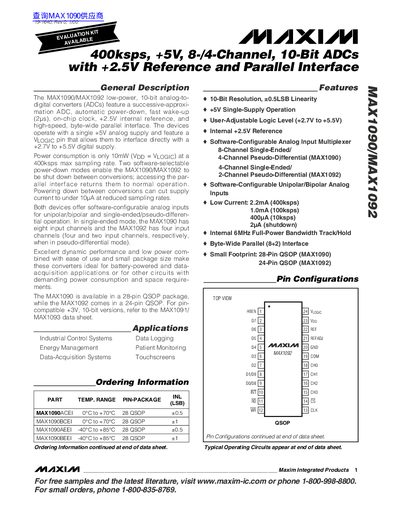

MAX1090/MAX1092 is a low-power, 10-bit analog-to-digital converter (ADC) featuring a successive- approximation ADC, automatic power-down, fast wake-up (2µs), on-chip clock, +2.5V internal reference, and high-speed, byte-wide parallel interface.
The MAX1090/MAX1092 are low-power, 10-bit ADCs featuring a successive-approximation architecture, automatic power-down, and a fast wake-up time of 2µs. They operate with a single +5V analog supply and include an on-chip clock and a high-speed, byte-wide parallel interface.
| Resolution | 10 Bits |
|---|---|
| Linearity (MAX109A) | +0.5 LSB |
| Sampling Rate | 400ksps max |
| Analog Supply Voltage | +5V Single-Supply |
| Internal Reference Voltage | +2.5V |
| Channels (MAX1090) | 8-Channel Single-Ended |
| Channels (MAX1092) | 4-Channel Single-Ended |
The MAX1090/MAX1092 devices operate at a 400ksps max sampling rate.
The MAX1090/MAX1092 feature a 10-bit Resolution.
In single-ended mode, the MAX1090 has eight input channels.
The REF Output Voltage is 2.5V.
