Vicor VI-J00 MiniMod DC-DC Converters 25 to 100 Watts is a high power density, board-mounted DC-DC converter from Vicor, with a maximum output power of 100W. It uses advanced zero-current switching forward converter technology, and features high efficiency, low noise and reliability.
The VI-JOO MiniMod family offers compact, high‑density isolated DC‑DC converters ranging from 25 W to 100 W. Featuring Vicor’s zero‑current‑switching forward converter technology, the modules deliver up to 90 % efficiency, low noise, and a maximum operating temperature of 100 °C.

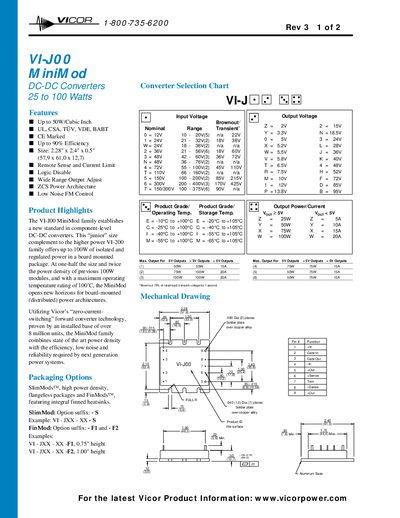

The datasheet lists detailed electrical parameters, mechanical dimensions (2.28" × 2.4" × 0.5"), weight (3 oz), and packaging options such as SlimMod and FinMod. It also includes input/output characteristics, remote‑sense compensation, and thermal performance data.
| Power Rating | 25 to 100 W |
|---|---|
| Efficiency | 78‑88 % (typ) – 80‑90 % (typ) |
| Dimensions | 2.28" × 2.4" × 0.5" |
| Maximum Operating Temperature | 100 °C |
The MiniMod achieves an efficiency of 78‑88 % typical, with some versions reaching up to 90 % typical.
Each MiniMod measures 2.28 inches wide, 2.4 inches deep, and 0.5 inches high.
The family covers power levels from 25 W up to 100 W.
The modules are rated for a maximum operating temperature of 100 °C.
