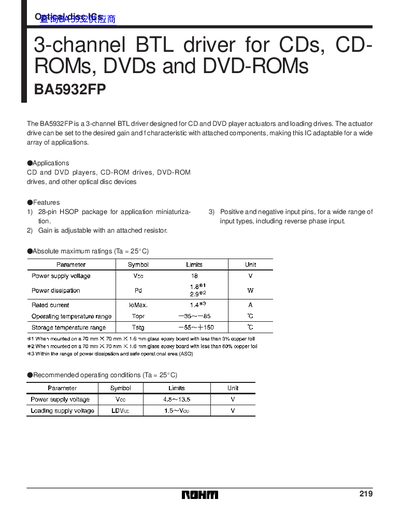

The BA5932FP is a 3-channel BTL driver designed for CD and DVD player actuators and loading drives. The actuator drive can be set to the desired gain and f characteristic with attached components, making this IC adaptable for a wide array of applications.
The ROHM BA5932FP is a 3-channel BTL driver designed for CD and DVD player actuators and loading drives. The actuator drive can be set to the desired gain and frequency characteristic with attached components, making this IC adaptable for a wide array of applications.
The device features a 28-pin HSOP package for application miniaturization and includes positive and negative input pins for a wide range of input types, including reverse phase input. Gain is adjustable with an attached resistor.
| Operating temperature range | -35~+85 C |
|---|---|
| Storage temperature range | -55~+150 C |
| Quiescent current dissipation (No load) | 15.5 mA |
| Maximum output amplitude | 85 V |
| Closed loop voltage gain | 6.0 dB |
The chip temperature exceeds 175°C (typically) and is restored when it falls to 150°C (typically).
Connect the IC to a 0.1F bypass capacitor to the power supply at the base of the IC.
