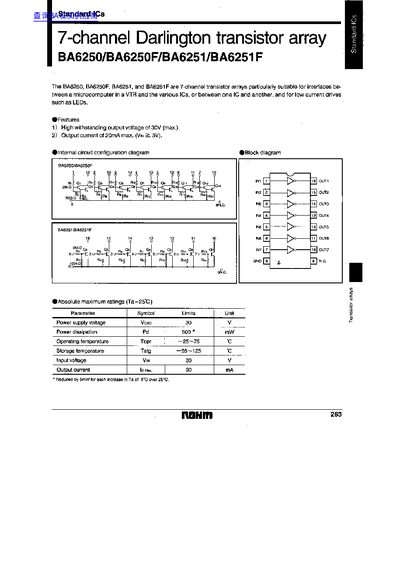

This document describes the ROHM BA6250, BA6250F, BA6251, and BA6251F, which are 7-channel Darlington transistor arrays. These components are designed for interfaces between microcomputers and various ICs, or for low current drives such as LEDs. The datasheet highlights features including a high withstanding output voltage of 30V and a maximum output current of 20mA at 3V input.
| Product Type | 7-channel Darlington transistor array |
|---|---|
| Withstanding Output Voltage | 30V (max.) |
| Output Current | 20mA max. (Vin = 3V) |
| Power Supply Voltage | 30 V |
| Power Dissipation | 500 mW |
| Operating Temperature | -25~75 C |
| Storage Temperature | -65~125 C |
| Package Types | DIP16, SOP16 |
They are suitable for interfaces between a microcomputer in a VTR and various ICs, or between one IC and another, and for low current drives such as LEDs.
The maximum output current is 20mA when the input voltage is 3V.
