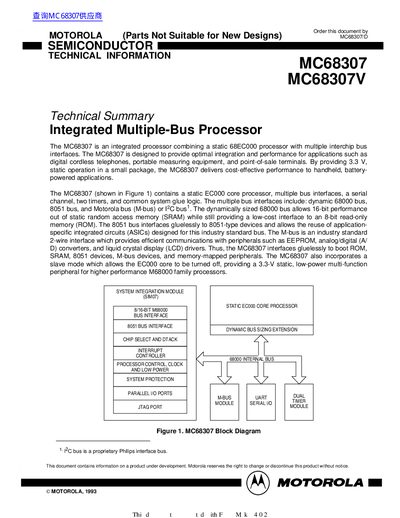

The MC68307 is an integrated processor combining a static 68EC000 processor with multiple interchip bus interfaces. It is designed to provide optimal integration and performance for applications such as digital cordless telephones, portable measuring equipment, and point-of-sale terminals. By providing 3.3V, static operation in a small package, the MC68307 delivers cost-effective performance to handheld, battery-powered applications.
The MC68307 is an integrated processor designed to provide optimal integration and performance for applications such as digital cordless telephones, portable measuring equipment, and point-of-sale terminals. It combines a static 68EC000 processor with multiple interchip bus interfaces, including dynamic 68000 bus, 8051 bus, and Motorola bus (M-bus) or I2C bus.
| Address Bus | 24-bit |
|---|---|
| Data Bus | 16-bit on-chip |
| Performance | 2.4 MIPS at 16.67-MHz |
| Operating Voltage | 3.3V + 0.3V and 5V + 0.5V |
| Package | 100-Lead Quad Flat Pack (QFP) |
The processor is designed for applications such as digital cordless telephones, portable measuring equipment, and point-of-sale terminals.
The processor delivers 2.4 MIPS performance at a 16.67-MHz processor clock.
The Universal Asynchronous Receiver/Transmitter module achieves a maximum transfer rate of 5 Mbits/s at a 16.67-MHz system clock.
