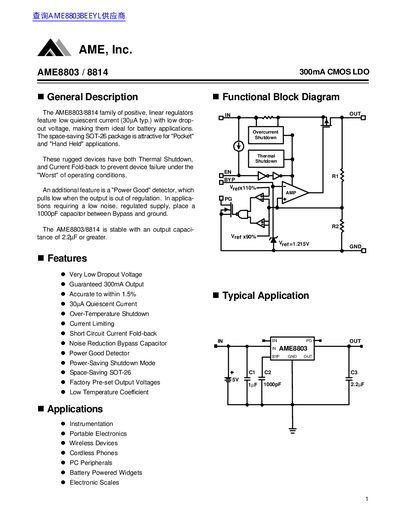

The AME8803/8814 family of positive, linear regulators feature low quiescent current (30µA typ.) with low drop- out voltage, making them ideal for battery applications.
The AME8803/8814 family consists of positive linear regulators designed for battery applications with very low dropout voltage and a guaranteed 300mA output. These devices feature protection mechanisms including over-temperature shutdown, current limiting, short circuit fold-back, and a power good detector.
| Output Current | 300mA Guaranteed |
|---|---|
| Quiescent Current | 30uA typ. |
| Output Voltage Accuracy | 1.5% |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | SOT-26 |
The device requires an output capacitance of 2.2uF or greater.
The Power Good detector pulls low to indicate the fault.
