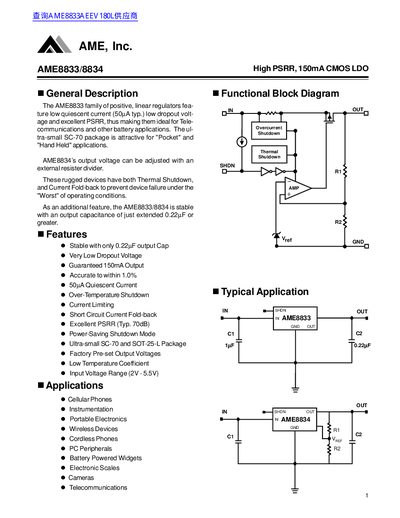

AME, Inc. 1 AME8833/8834 High PSRR, 150mA CMOS LDO is a low quiescent current, low dropout voltage, excellent PSRR linear regulator, suitable for battery powered portable electronic devices such as mobile phones, wireless devices, handheld devices, etc.
The AME8833 family of positive linear regulators features low quiescent current (50µA typ.), low dropout voltage, and excellent Power Supply Rejection Ratio (PSRR). These rugged devices include Thermal Shutdown and Current Fold-back protection to prevent failure under worst-case operating conditions. The AME8834 variant allows for an adjustable output voltage using an external resistor divider.
These regulators are stable with a minimum output capacitance of 0.22µF and are available in ultra-small SC-70 and SOT-25-L packages, making them ideal for pocket and hand-held applications such as cellular phones, instrumentation, and portable electronics.
| Output Current | 150mA Guaranteed |
|---|---|
| Quiescent Current | 50µA typ. |
| PSRR | 70dB Typ. |
| Output Voltage Accuracy | 1.0% |
| Input Voltage Range | 2V - 5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Output Capacitance Requirement | 0.22µF or greater |
The device is stable with an output capacitance of 0.22µF or greater.
The quiescent current is typically 50µA.
