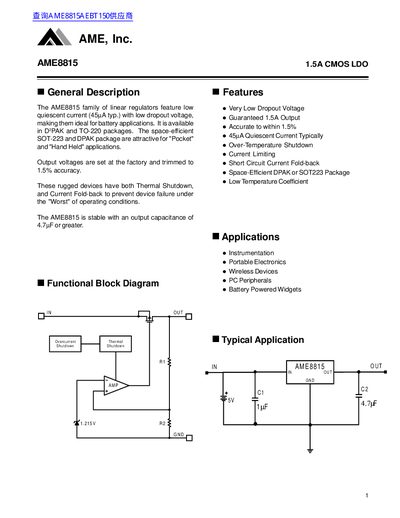

AME8815 is a 1.5A LDO chip from AME, Inc. with low quiescent current and low dropout voltage, making it ideal for battery powered applications.
The AME8815 is a family of linear regulators featuring very low quiescent current (45µA typical) and low dropout voltage, making them ideal for battery-powered applications. Output voltages are factory-set with 1.5% accuracy. The devices include protection features such as thermal shutdown, over-temperature shutdown, and short circuit current fold-back to prevent failure under worst-case operating conditions.
| Output Current | 1.5A Guaranteed |
|---|---|
| Quiescent Current | 45µA Typical |
| Output Voltage Accuracy | 1.5% |
| Input Voltage (Max) | 8V |
| Operating Temperature Range | -40°C to +85°C |
| Junction Temperature (Max) | 125°C |
The device is available in TO-220, TO-252 (DPAK), SOT-223, and TO-263 packages.
The device is stable with an output capacitance of 4.7uF or greater.
The absolute maximum input voltage rating is 8 V.
The maximum junction temperature is 150 °C.
