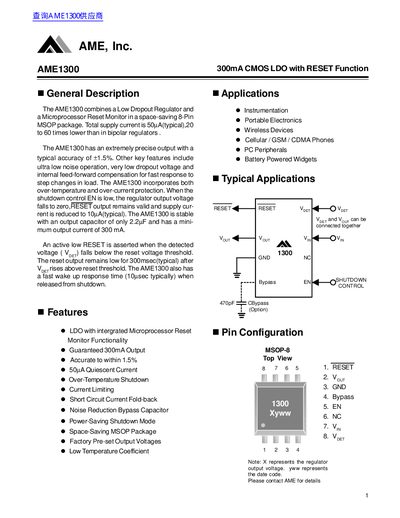

AME1300 is a low power LDO from AME company with 300mA output, accuracy up to ±1.5%, and integrated microprocessor reset monitor function.
The AME1300 is a combination of a fixed output, low dropout regulator and microprocessor monitor. It features a typical supply current of 50µA, which is significantly lower than bipolar regulators. The device includes over-temperature and over-current protection, as well as a power-saving shutdown mode that reduces supply current to 10µA typical when the EN pin is low.
The AME1300 is available in an 8-Pin MSOP package with factory pre-set output voltages ranging from 2.7V to 3.0V. It is stable with an output capacitor of only 2.2µF and is designed for applications such as instrumentation, portable electronics, and wireless devices.
| Output Current | 300 mA |
|---|---|
| Output Voltage Accuracy | 1.5% |
| Operating Temperature Range | -40°C to +85°C |
| Package Type | MSOP-8 |
| Dropout Voltage (300mA) | 390 mV |
| Power Supply Rejection | 50 dB |
The device is stable with an output capacitor of only 2.2µF.
The typical supply current is 50 µA.
The reset output remains low for 300 msec typically.
The device has a minimum output current of 300 mA.
