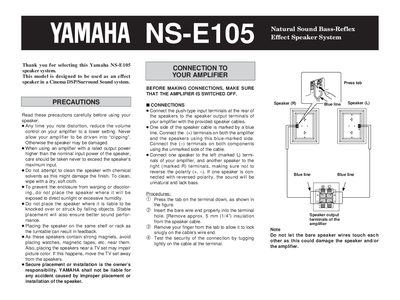

This is a Yamaha NS-E105 speaker system designed for use in a Cinema DSP/Surround Sound system.
The Yamaha NS-E105 is a 2-way bass-reflex type speaker designed to be used as an effect speaker in a Cinema DSP/Surround Sound system. It features a 10 cm paper cone woofer and a 2.5 cm paper cone tweeter with a sensitivity of -90 dB/Aw/m.
| Type | 2 way Bass-Reflex type |
|---|---|
| Speaker Unit | 10 cm paper cone woofer (JA1075) / 2.5 cm paper cone tweeter (JA05S4) |
| Nominal Impedance | -90 dB/Aw/m |
| Frequency Response | 6 kHz, 6 dB/oct. |
| Weight | 2 kg (4 lbs. 7 oz.) |
Connect the side of the cable marked by a blue line to the (+) terminals and use the unmarked side for the (-) terminals.
Yes, the holes on the back panels allow mounting in either an upright configuration or a side long configuration.
Avoid placing watches or magnetic tapes near the speakers, as they contain strong magnets.
