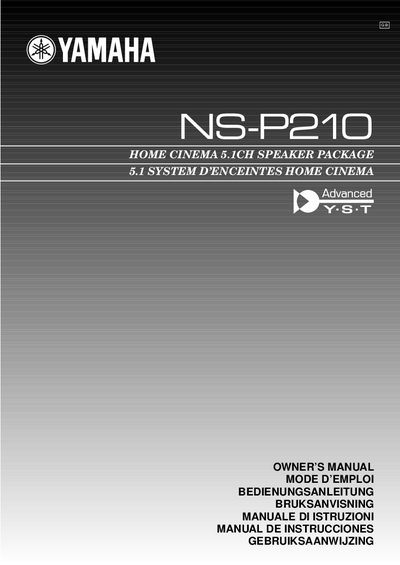

This is a user manual of a 5.1-channel home theater speaker package
The Yamaha NS-P210 is a 5.1-channel home cinema speaker package that includes main and rear speakers (NX-210P), a center speaker (NX-C210), and an active subwoofer (SW-P201). The package is designed for use in multi-channel audio systems to create a theater-in-the-home effect.
| Configuration | 5.1CH SPEAKER PACKAGE |
|---|---|
| Main/Rear Speaker Type | Full-range acoustic-suspension speaker system |
| Center Speaker Type | Full-range acoustic-suspension speaker system |
| Subwoofer Type | Active Servo Processing Subwoofer System |
| Voltage | 110-120/220-240 V AC, 50/60 Hz |
The package includes two pairs of main/rear speakers (NX-210P), a center speaker (NX-C210), a subwoofer system (SW-P201), speaker cords, mounting brackets, screws, and a voltage selector.
It is recommended to place the subwoofer on the outside of either the right or the left main speaker, facing at an angle to the wall to prevent bass cancellation.
Main speakers should be on both sides of and at approximately the same height as the TV set. Rear speakers should be behind the listening position facing slightly inward. The center speaker should be precisely between the main speakers.
