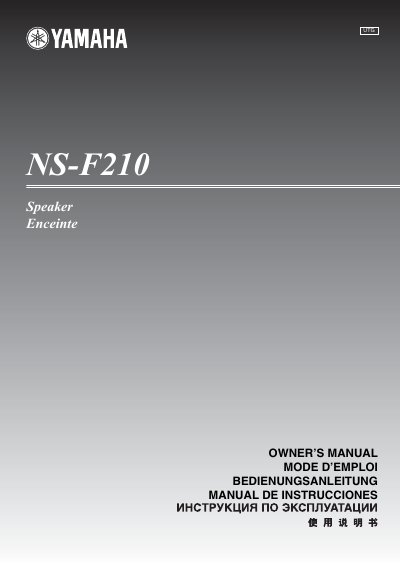

This document is the owner's manual for YAMAHA NS-F210 Speaker Enceinte UTG, providing installation requirements and precautions for the speaker.
The Yamaha NS-F210 is a two-way bass reflex speaker system featuring an 8 cm cone woofer and a 2.2 cm balanced dome tweeter. This Owner's Manual covers essential precautions, including proper placement to avoid vibration damage and electrical hazards, as well as guidelines for safe handling during transport.
| Woofer Size | 8 cm (3- 1/8") cone woofer x 2 |
|---|---|
| Tweeter Size | 2.2 cm (1") balanced dome tweeter |
| Impedance | 6 Q |
| Frequency Response | 50 Hz to 45 kHz (-10 dB) to 100 kHz (-30 dB) |
| Nominal Input Power | 40 W |
| Maximum Input Power | 120 W |
| Sensitivity | 86 dB/2.83 Vim |
| Crossover Frequency | 8 kHz |
Place the speaker in a cool, dry, clean place away from windows, heat sources, dust, moisture, and cold. Avoid direct sunlight to prevent warping.
Connect the screw-type input terminals at the rear of the speakers to the speaker output terminals of the amplifier using the supplied cable.
