This is a user manual that introduces the use of the NX-E150 speaker system, including installation, use, and precautions.

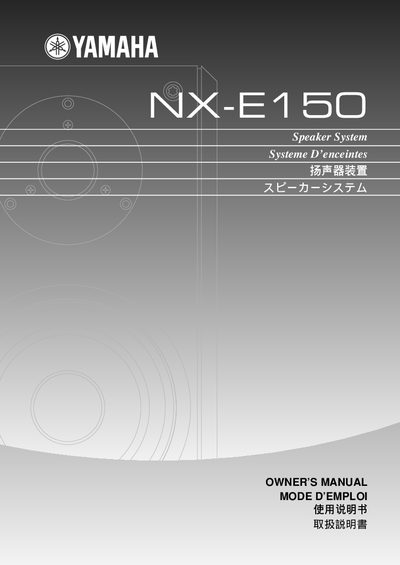

This document is the Owner's Manual for the Yamaha NX-E150 speaker system. It includes safety precautions, instructions for connecting the speakers to a CRX-E150 CD receiver, and guidelines for placing the speakers for optimal sound performance. The manual also explains how to remove the front cover for access.
| Type | 2-way bass-reflex speaker system (Magnetic shielding type) |
|---|---|
| Woofer | 11 cm (4-1/2") cone woofer |
| Tweeter | 2.5 cm (1") dome tweeter |
| Sensitivity | 85 dB/2.83 V/m |
| Dimensions | 165 x 255 x 183 mm (6-1/2" x 10" x 7-3/16") |
| Weight | 3.3 kg (7 Ibs. 5 02.) x 2 |
Reduce the volume control on your receiver to a lower setting and never allow the receiver to be driven into "clipping".
No, placing the speakers on the same shelf or rack as the turntable can result in feedback.
Connect the red side of the cable to the (+) terminals and the black side to the (—) terminals, ensuring correct polarity.
