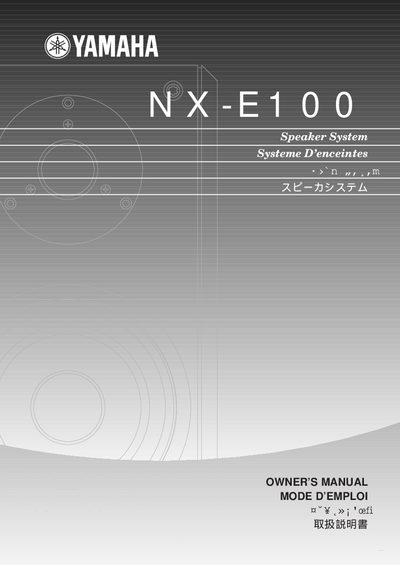

This is an owner's manual for the Yamaha NX-E100 speaker system, which includes precautions for using the speaker and instructions for installation and connection.
This document is the Owner's Manual for the Yamaha NX-E100 speaker system. It covers essential precautions for safe operation, such as avoiding clipping and proper placement to prevent damage or feedback. The guide details how to connect the speakers to a compatible receiver, specifically mentioning the RX-E100 model, and explains the procedure for attaching speaker wires to the terminals.
| Type | 2-way bass-reflex speaker system |
|---|---|
| Woofer | 13 cm cone woofer |
| Tweeter | 2.5 cm dome tweeter |
| Frequency response | 55 Hz - 28 kHz (-10 dB) |
| Sound pressure level | 87 dB/2.83 V.m |
| Dimensions | 86 x 300 x 222 mm |
| Weight | 4 kg (8 Ibs. 13 02.) x 2 |
No, this speaker system is designed for home use only and should never be used inside a car.
Insert the bare wire end into the terminal hole after removing approx. 10 mm of insulation, then tighten the knob.
