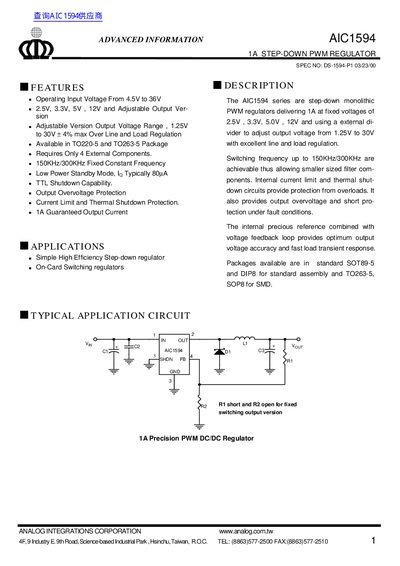

The AIC1594 is a 1A step-down PWM regulator from Analog Integrations Corporation. It can operate at input voltages from 4.5V to 36V and has 2.5V, 3.3V, 5V, 12V, and adjustable output versions. The adjustable version has an output voltage range of 1.25V to 30V with ±4% maximum line and load regulation. The regulator is available in TO220-5 and TO263-5 packages and requires only 4 external components. It has a fixed constant frequency of 150KHz/300KHz, a low power standby mode (IQ typically 80µA), TTL shutdown capability, output overvoltage protection, current limit and thermal shutdown protection, and a guaranteed output current of 1A.
The AIC1594 series are step-down monolithic PWM regulators delivering 1A at fixed voltages or adjustable output from 1.25V to 30V using an external divider. The device operates with input voltages ranging from 4.5V to 36V and features switching frequencies of up to 150kHz/300kHz.
| Output Current | 1A |
|---|---|
| Input Voltage Range | 4.5V to 36V |
| Output Voltage Range (Adjustable) | 1.25V to 30V |
| Switching Frequency | 150kHz/300kHz |
| Quiescent Current (Shutdown) | 80uA |
The regulator delivers a guaranteed output current of 1A.
Yes, the adjustable version allows output voltage from 1.25V to 30V using an external diode.
The device is available in TO-220-5, TO-263-5, SOT89-5 (SOP8), and DIP8 packages.
