PTZ5.1B is a small power diode produced by ROHM. Its features are small size, low power consumption, and high ESD tolerance.

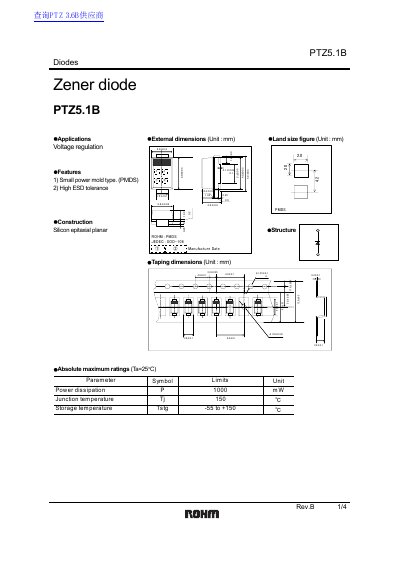

The document is a datasheet for the ROHM PTZ5.1B Zener diode, featuring a small power PMDS package. It details the device's construction, external dimensions, and marking information. The datasheet includes a comprehensive table of electrical characteristics for various voltage ratings within the PTZ series, with specific data for the 5.1V model.
| Package Type | PMDS |
|---|---|
| Construction | Silicon epitaxial planar |
| JESD Designation | SOD-106 |
| Zener Voltage (Typical) | 5.1 V |
The typical Zener voltage is 5.100 V.
The typical Zener voltage is 5.368 V.
The maximum junction temperature is 150 °C.
