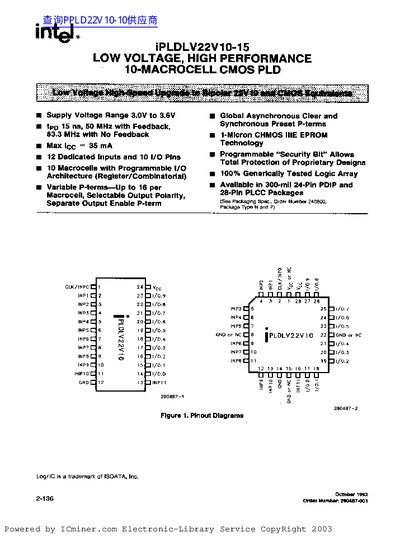

The iPLDLV22V10 is a general-purpose CMOS Programmable Logic Device (PLD) designed for high integration and performance. It accommodates logic functions with up to 22 inputs and 10 I/O macrocells, utilizing a 1-micron CHMOS IIIE EPROM technology. The device is 100% JEDEC pin- and function-compatible with the industry-standard 22V10 PLD, allowing it to replace conventional 22V10 devices in existing designs with minor adjustments for unused pins.
Key features include programmable output polarity, selectable feedback options (pin or internal register), and a programmable security bit that prevents data copying. The device is available in 24-pin PDIP and 28-pin PLCC packages and supports frequencies up to 83.3 MHz with no feedback. It includes dedicated input pins and programmable macrocells that can function as inputs, combinatorial outputs, or registered outputs.
| Supply Voltage Range | 3.0V to 3.6V |
|---|---|
| Max Frequency (No Feedback) | 83.3 MHz |
| Max Frequency (With Feedback) | 50 MHz |
| Max ICC | 35 mA |
| Dedicated Inputs | 12 |
| Operating Temperature | 0°C to +70°C |
| Input Capacitance | 8 pF |
Yes, it is 100% JEDEC-, pin-, and function-compatible with the industry-standard 22V10 PLD.
The device is available in 300-mil 24-Pin PDIP and 28-Pin PLCC packages.
Yes, a programmable security bit allows total protection of proprietary designs by preventing data copying.
