B1035CL is a diode produced by Schneider Electric. It uses the Schottky barrier principle in a large area metal-to-silicon power diode. It features epitaxial construction with oxide passivation and metal overlay contact.

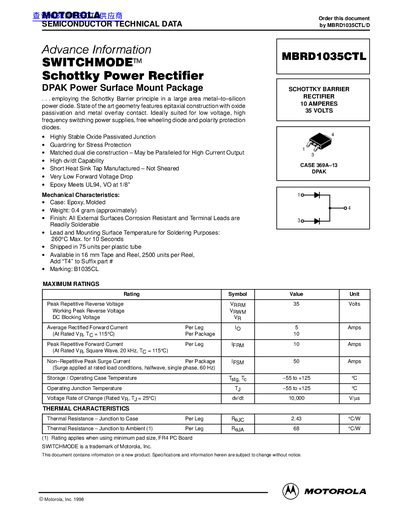

This document provides technical data for the MBRD1035CTL/D, a SWITCHMODE™ Schottky Power Rectifier designed for low voltage and high frequency switching applications. The device features a matched dual die construction within a DPAK power surface mount package (Case 369A-13) and is ideally suited for free wheeling diode and polarity protection roles.
The datasheet details the maximum ratings, including a peak repetitive reverse voltage of 35 Volts and an average rectified forward current of 10 Amperes per leg. It also includes electrical characteristics such as typical forward voltage drops at various temperatures, thermal resistance values, and package mechanical dimensions.
| Storage / Operating Case Temperature | -55 to +125 °C |
|---|---|
| Thermal Resistance — Junction to Case Per Leg (RθJC) | 2.43 °CAV |
| Package Type | DPAK Power Surface Mount Package |
The storage and operating case temperature range from -55 to +125 °C.
Yes, it is ideally suited for low voltage, high frequency switching power supplies.
