The MC14093B is a low-power Schmitt trigger manufactured by Motorola.

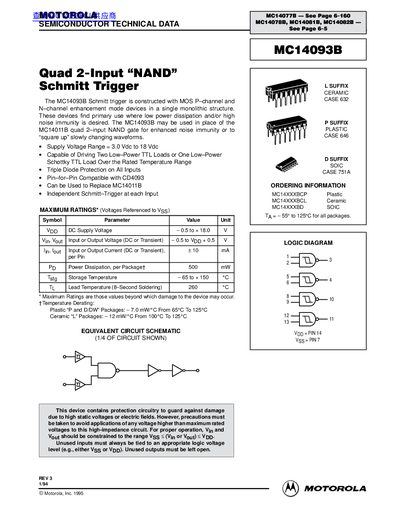

This document provides technical data for the Motorola MC14093B, a quad 2-input NAND Schmitt trigger constructed with MOS P-channel and N-channel enhancement mode devices. The device is designed for applications requiring low power dissipation and high noise immunity, offering pin-for-pin compatibility with the CD4093.
| Supply Voltage Range | 3.0 Vdc to 18 Vde |
|---|---|
| Output Drive Current (TTL) | Two Low-Power TTL Loads or One Low-Power Schottky TTL Load |
| Input Protection | Triple Diode Protection on All Inputs |
| Compatibility | Pin-for-Pin Compatible with CD4093 |
| Operating Temperature Range | -55°C to 125°C |
It finds primary use where low power dissipation and/or high noise immunity is desired.
Yes, it may be used in place of the MC14011B for enhanced noise immunity or to square up slowly changing waveforms.
Input or Output Voltage (DC or Transient) ranges from -0.5V to +18V.
