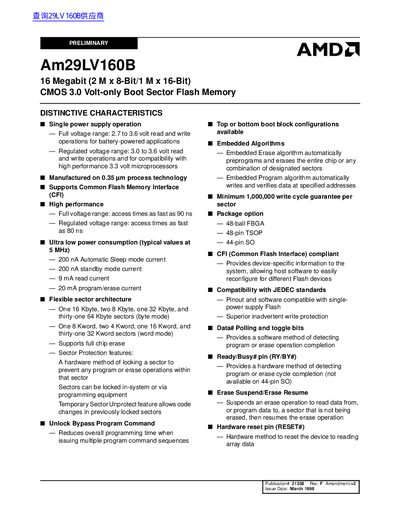

Am29LV160B 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS 3.0 Volt-only Boot Sector Flash Memory This memory supports single power supply operation, full voltage range of 2.7 to 3.6 volts for battery-powered applications.
The AMD Am29LV160B is a 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) CMOS Flash memory designed for 3.0 Volt-only operation. It features a single power supply range of 2.7 to 3.6 volts for read/write operations and is manufactured on a 0.35 um process technology. The device supports the Common Flash Memory Interface (CFI) and offers access times as fast as 80 ns in the regulated voltage range.
| Capacity | 16 Megabit (2 M x 8-Bit/1 M x 16-Bit) |
|---|---|
| Voltage Range (Full) | 2.7 to 3.6 volt |
| Voltage Range (Regulated) | 3.0 to 3.6 volt |
| Access Time (Regulated) | 80 ns |
| Access Time (Full) | 90 ns |
| Process Technology | 0.35 um |
| Standby Current | 200 nA |
| Read Current | 9mA |
| Package Options | 48-ball FBGA, 48-pin TSOP, 44-pin SO |
The device requires only a single 3.0 volt power supply for both read and write functions.
Yes, it supports a flexible sector architecture allowing sectors to be erased and reprogrammed without affecting other sectors.
The device offers access times of 80, 90, and 120 ns.
