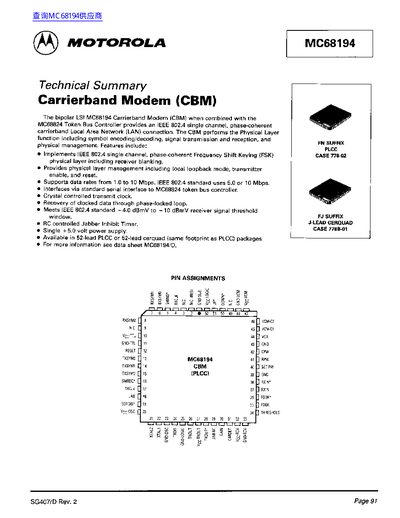

The Motorola MC68194 Carrierband Modem (CBM) is a bipolar LS device designed to provide an IEEE 802.4 single channel, phase-coherent carrierband Local Area Network (LAN) connection when combined with the MC68824 Token Bus Controller. It performs Physical Layer functions including symbol encoding/decoding, signal transmission and reception, and physical management.
| Data rates | 1.0 to 10 Mbps |
|---|---|
| Power supply | Single +5.0 volt |
| Receiver threshold | +4.0 dBmV to +10 dBmvV |
The modem supports data rates from 1.0 to 10 Mbps.
The device requires a single +5.0 volt power supply.
The modem meets the standard with a receiver signal threshold of +4.0 dBmV.
