The MC68040V is a high-performance, 32-bit, 3.3-V, static microprocessor that provides a low-power mode of operation.

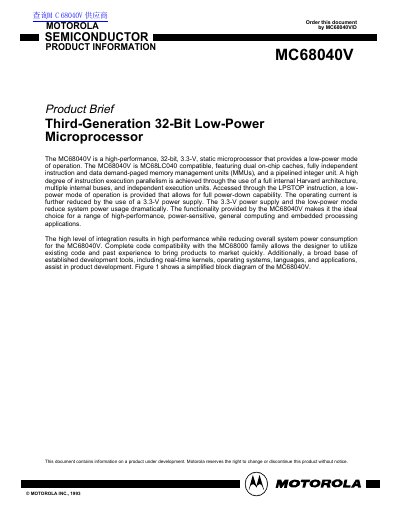

The Motorola MC68040V is a high-performance, 32-bit, 3.3-V, static microprocessor designed for general computing and embedded processing applications. It features dual on-chip caches, fully independent instruction and data demand-paged memory management units (MMUs), and a pipelined integer unit to achieve high instruction execution parallelism.
| Operating Frequency | 0–33 MHz |
|---|---|
| Package Type | 184-Pin Ceramic Quad Flat Pack |
| Instruction Performance | 26.1 MIPS at 25 MHz |
| Instruction Performance | 34.8 MIPS at 33 MHz |
| On-chip Caches | Dual 4-Kbyte |
| Addressing Range | 4 Gbytes |
| Power Supply | 3.3 V |
Yes, the MC68040V is MC68LC040 compatible.
The primary power supply voltage is 3.3 V.
