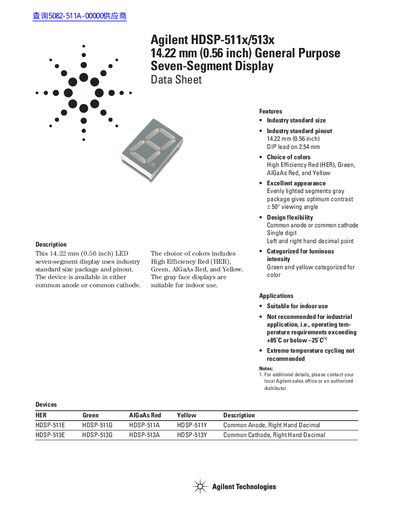

This document introduces the features of Agilent HDSP-511x/513x series LED seven-segment displays, including industry standard size, industry standard pinout, optional colors, excellent appearance, design flexibility and suitable range.
The document describes the Agilent HDSP-511x/513x series of 14.22 mm (0.56 inch) General Purpose Seven-Segment Displays. These devices utilize an industry standard size package and pinout, offering a choice of colors including High Efficiency Red (HER), Green, AlGaAs Red, and Yellow. They are designed for indoor use with evenly lighted segments in a gray package providing optimum contrast.
| Size | 14.22 mm (0.56 inch) |
|---|---|
| Package Type | DIP lead on 2.54 mm |
| Viewing Angle | +50° |
| Peak Forward Current per Segment | 80-100 mA |
The devices are available in High Efficiency Red (HER), Green, AlGaAs Red, and Yellow.
No, they are not recommended for industrial applications where operating temperatures exceed +85°C or drop below -25°C.
The displays use a DIP lead on 2.54 mm.
