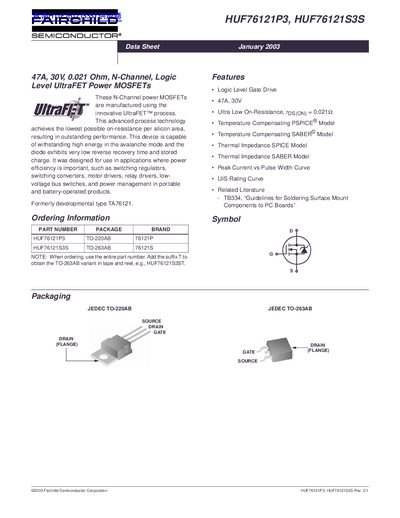

HUF76121P3, HUF76121S3S 47A, 30V, 0.021 Ohm, N-Channel, Logic Level UltraFET Power MOSFETs High performance 47A N-channel ultra low-resistance logic level MOSFETs
This document is a datasheet for the HUF76121P3 and HUF76121S3S N-Channel Logic Level Power MOSFETs, formerly developmental type TA76121. These devices are manufactured using the UltraFET process and are designed for applications requiring power efficiency, such as switching regulators, motor drivers, and power management in portable products.
| Thermal Resistance Junction to Case | 1.66 °C/W |
|---|---|
| Thermal Resistance Junction to Ambient (TO-220 and TO-263) | 62 °C/W |
| Drain to Source On Resistance (Typical) | 0.021 Ohm |
The part numbers are HUF76121P3 and HUF76121S3S.
The device is available in TO-220AB (HUF76121P3) and TO-263AB (HUF76121S3S) packages.
