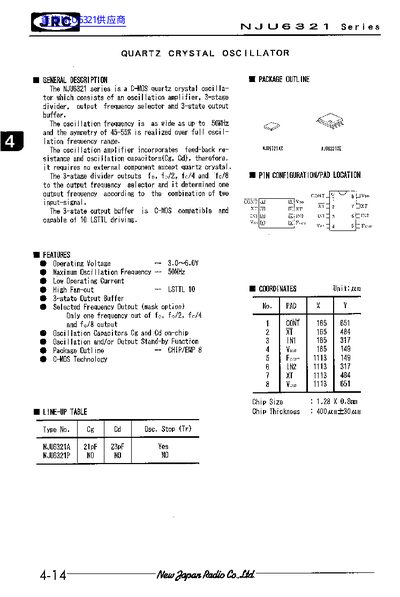

The NJU6321 series is a C-MOS quartz crystal oscillator consisting of an oscillation amplifier, 3-stage divider, output frequency selector, and 3-state output buffer. It operates with a supply voltage of 3.0 to 6.0V and supports frequencies up to 50MHz. The device requires no external components other than the quartz crystal due to on-chip oscillation capacitors (Cg, Cd).
| Operating Voltage | 3.0 ~ 6.0V |
|---|---|
| Maximum Oscillation Frequency | 50MHz |
| Output Current | 4 mA |
| Operating Temperature Range | -40 ~ +85 C |
| Chip Size | 1.28 X 0.8mm |
No, the oscillation capacitors Cg and Cd are on-chip.
The maximum oscillation frequency is 50MHz.
