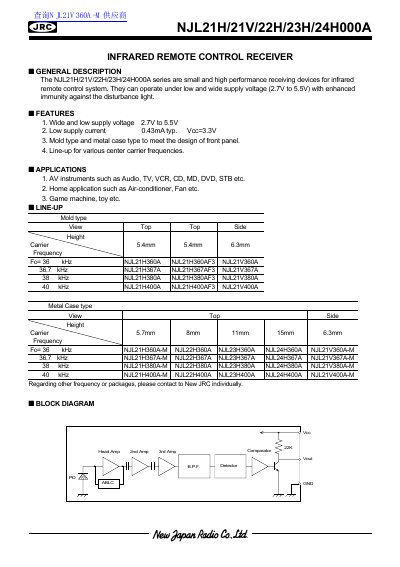

NJL21H/21V/22H/23H/24H000A series are small and high performance infrared remote control receivers, with wide and low supply voltage (2.7V to 5.5V), enhanced immunity against the disturbance light.
The document describes the NJL21H/21V/22H/23H/24H000A series of small, high-performance receiving devices designed for infrared remote control systems. These components operate under a wide supply voltage range of 2.7 V to 5.5 V and offer enhanced immunity against disturbance light. The datasheet provides information on various package types (mold and metal case) available for different center carrier frequencies ranging from 36 kHz to 40 kHz.
| Supply Voltage Range | 2.7 V to 5.5V |
|---|---|
| Typical Supply Current | 0.43mA typ. |
| Operating Temperature Range | -30 to +85 °C |
| Carrier Frequencies | 36 kHz, 36.7 kHz, 38 kHz, 40 kHz |
| Output Voltage High (No Load) | 2.8 V |
The device operates within a temperature range of -30 to +85 °C.
The recommended operating condition requires a supply voltage between 2.7 V and 5.5V.
