NJL5165KL is a voltage amplifier produced by NJL. Its maximum output current is 0.5A and its maximum output power is 2W.

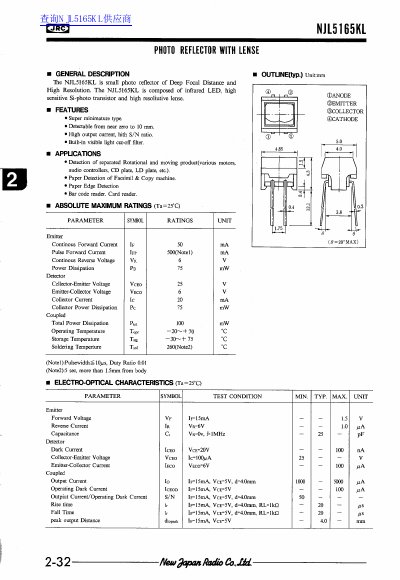

This document is a technical datasheet for the NJL5165KL, a small photo reflector with deep focal distance and high resolution. The device consists of an infrared LED, a highly sensitive Si-photo transistor, and a high-resolution lens.
The datasheet provides absolute maximum ratings, electro-optical characteristics, typical performance curves, and measuring specifications for output current and response time. It also includes specific precautions regarding soldering, post-solder cleaning, and general handling to ensure optimal optical performance.
| Detectable Distance Range | near zero to 10 mm |
|---|---|
| Emitter Continuous Forward Current | 50 mA |
| Detector Collector-Emitter Voltage | 25 V |
| Operating Temperature Range | -20~+70 °C |
| Soldering Temperature (Max) | 260°C |
It is used for detecting separated rotational and moving products, paper detection in facsimile machines, paper edge detection, bar code reading, and card reading.
The maximum continuous forward current rating for the emitter is 50 mA.
