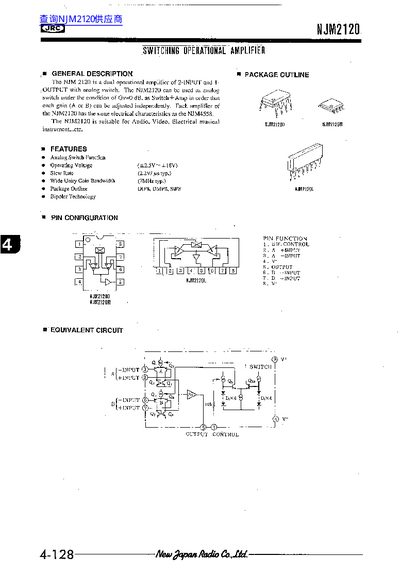

NJM2120 is a product, and this document provides its specification information without any guarantee for accuracy or completeness. The document also includes application circuit examples for the product.
The document describes the NJM2120, a dual operational amplifier with an integrated analog switch. It features bipolar technology and is suitable for audio, video, and electrical musical instrument applications. The device allows independent adjustment of gain (A or B) and can function as an analog switch under specific conditions.
| Supply Voltage | +/-18 V |
|---|---|
| Operating Temperature Range | -40 ~ +85 C |
| Unity Gain Bandwidth | 7 MHz typ. |
| Slew Rate | 2.2 V/us typ. |
| Input Offset Voltage | 6.0 mV max |
The typical unity gain bandwidth is 7 MHz.
Yes, it can be used as an analog switch under the condition of Gv=0 dB.
