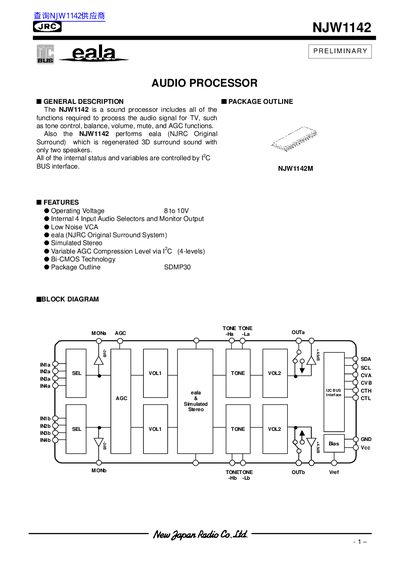

NJW1142 is a sound processor that includes all of the functions required to process the audio signal for TV, such as tone control, balance, volume, mute, and AGC functions. It also performs eala (NJRC Original Surround) which is regenerated 3D surround sound with only two speakers. All of the internal status and variables are controlled by I2C BUS interface.
The NJW1142 is a sound processor designed to handle audio signals for television applications. It integrates functions such as tone control, balance, volume, mute, and automatic gain control (AGC). A key feature is its ability to perform 'eala' (NJRC Original Surround System), which regenerates 3D surround sound using only two speakers. The device is controlled via a PC BUS interface.
| Operating Voltage | 8 to 10V |
|---|---|
| Supply Current | 30 to 50 mA |
| Operating Temperature Range | -20 to +75 °C |
| Technology | Bi-CMOS |
| Package Type | SDMP30 |
| Maximum Input Voltage | 3.0 Vrms |
| Maximum Output Voltage | 2.5 Vrms |
| Total Harmonic Distortion | 0.5 % |
It processes audio signals for TV including tone control, balance, volume, mute, and AGC functions, and performs simulated 3D surround sound.
All internal status and variables are controlled by a PC BUS interface.
The operating voltage range is 8.0V to 10.0V.
