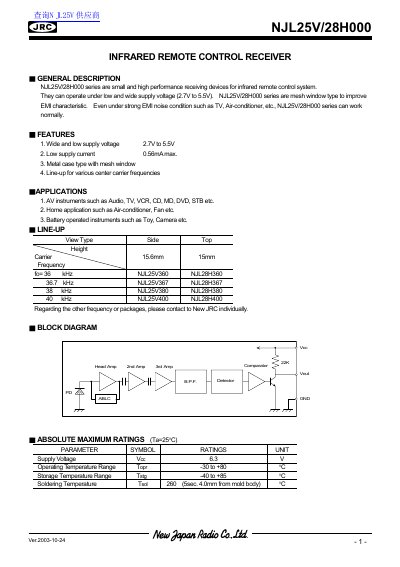

The NJL25V/28H000 series are small, high-performance receivers for infrared remote control systems. They can operate under low and wide supply voltage (2.7V to 5.5V). The NJL25V/28H000 series are metal case type with mesh window to improve EMI characteristic. Even under strong EMI noise condition such as TV, Air-conditioner, etc., NJL25V/28H000 series can work normally.
The document describes the NJL25V/28H000 series as small, high-performance receiving devices designed for infrared remote control systems. These receivers operate under a wide supply voltage range of 2.7V to 5.5V and feature a metal case with a mesh window to improve EMI characteristics against noise from sources like TVs and air conditioners.
| Supply Voltage Range | 2.7V to 5.5V |
|---|---|
| Max Supply Current | 0.56mA |
| Operating Temperature Range | -30 to +80 °C |
| Storage Temperature Range | -40 to +85 °C |
| Max Supply Voltage | 6.3 V |
The maximum supply current is 0.56mA.
The maximum supply current is 0.56 mA.
The operating temperature range is from -30 to +80 °C.
The absolute maximum supply voltage rating is 6.3 V.
