NJL5165K-H2 MEMO product description

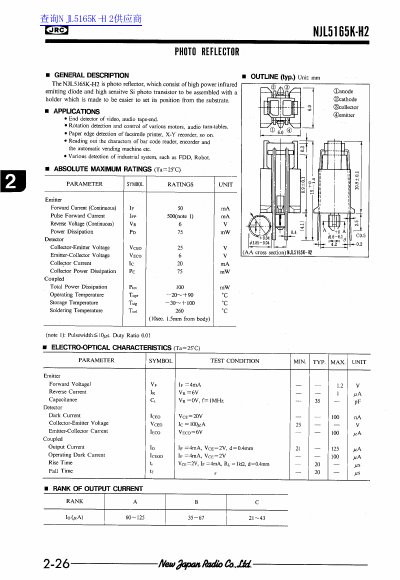

This document is a technical datasheet for the NJL5165K-H2 photo reflector manufactured by New Japan Radio Co., Ltd. (JRC). The device consists of a high-power infrared emitting diode and a high-sensitive Si photo transistor assembled with a Danode holder. It is designed for applications such as video/audio tape-end detection, motor rotation control, paper edge detection, and barcode reading. The datasheet provides absolute maximum ratings, electro-optical characteristics, and typical performance curves.
| Forward Current (Continuous) | 50 mA |
|---|---|
| Reverse Voltage (Continuous) | 6 V |
| Power Dissipation | 75 mW |
| Collector-Emitter Voltage | 25 V |
| Operating Temperature | -20~+90 °C |
| Storage Temperature | -30~+100 °C |
It is used for end detection of video/audio tapes, rotation detection of motors, paper edge detection in printers, and barcode reading.
The recommended soldering temperature is a maximum of 260°C for less than 10 seconds.
