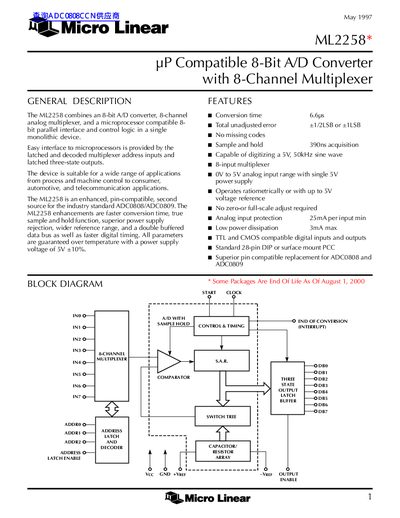

The ML2258 is an integrated circuit that combines an 8-bit A/D converter, 8-channel analog multiplexer, 8-bit parallel interface and control logic. The device is suitable for a wide range of applications from process and machine control to consumer, automotive and telecommunications applications. The ML2258 is an enhanced, pin-compatible, second source for the industry standard ADC0808/ADC0809. The ML2258 enhancements are faster conversion time, true sample and hold function, superior power supply rejection, wider reference range, and a double buffered data bus as well as faster digital timing. All parameters are guaranteed over temperature with a power supply voltage of 5V ±10%.
The ML2258 is an enhanced, pin-compatible second source for the industry standard ADC0808/ADC0809. It combines an 8-bit A/D converter, 8-channel analog multiplexer, and microprocessor compatible 8-bit parallel interface in a single monolithic device. Key enhancements include faster conversion time, true sample and hold function, superior power supply rejection, and a double buffered data bus.
| Conversion time | 6.6us |
|---|---|
| Total unadjusted error | +1/2LSB or +1LSB |
| Sample and hold acquisition | 390ns |
| Analog input range | OV to 5V |
| Supply voltage | 5V +10% |
| Supply current | 3mA max |
It is an enhanced, pin-compatible replacement for the industry standard ADC0808 and ADC0809.
Yes, it combines an 8-bit A/D converter with an 8-channel analog multiplexer.
