USB08XX series is a TVS array designed for the USB bus, which can protect USB and I/O transceivers from electrostatic discharge and other induced voltage surges. This series of products has a peak power rating of 500 watts, which can provide high reliability protection for applications.

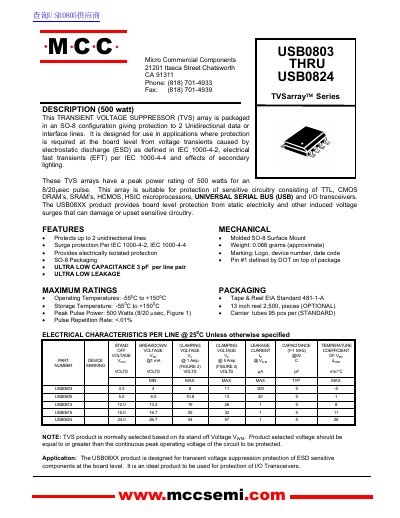

The document describes the TVSarray™ Series, a Transient Voltage Suppressor (TVS) array packaged in an SO-8 configuration. It is designed to protect up to two unidirectional data or interface lines from voltage transients caused by electrostatic discharge (ESD), electrical fast transients (EFT), and secondary lightning effects.
The product line includes specific models such as USBO803, USBO805, USBO812, USBO815, and USBO824. These devices offer board-level protection for sensitive circuitry including TTL, CMOS, SRAM, HCMOS, HSIC microprocessors, Universal Serial Bus (USB), and I/O transceivers.
| Package Configuration | SO-8 Surface Mount |
|---|---|
| Peak Pulse Power | 500 Watts (8/20 usec) |
| Operating Temperature Range | -55°C to +150°C |
| Capacitance (Typical) | 3 pF per line pair |
It protects sensitive circuitry consisting of TTL, CMOS DRAWM's, SRAM's, HCMOS, HSIC microprocessors, UNIVERSAL SERIAL BUS (USB) and I/O transceivers.
The product is designed for transient voltage suppression protection of ESD sensitive components at the board level.
