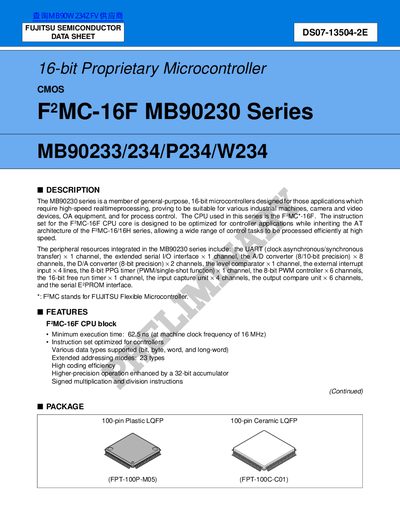

MB90230 series is a member of F2MC-16F series 16-bit CMOS microcontrollers, with high-speed real-time processing capability, suitable for industrial machines, camera and video devices, OA equipment and process control applications.
The MB90230 series is a general-purpose, 16-bit microcontroller designed for high-speed real-time processing in industrial machines, camera/video devices, OA equipment, and process control applications. The series utilizes the FUJITSU Flexible Microcontroller (FMC)-16F CPU core.
| CPU Core | FMC-16F |
|---|---|
| Minimum execution time | 62.5 ns (at 16 MHz) |
| ROM size (MB90233) | 48 Kbytes |
| RAM size (MB90234/W234/P234) | 3 Kbytes |
| A/D converter resolution | 8/10-bit precision |
| D/A converter resolution | 8-bit precision |
The series is suitable for various industrial machines, camera and video devices, OA equipment, and process control.
The minimum execution time is 62.5 ns at a machine clock frequency of 16 MHz.
The A/D converter has 8 input channels with either 8-bit or 10-bit precision.
