The VSB series power relay is a 16A miniature power relay with UL, CSA, VDE, SEV, FIMKO, SEMKO, IMQ, ÖVE, BSI certification, working class C, service type continuous duty, high insulation, low power consumption, high sensitivity, plastic sealed (with tape) features

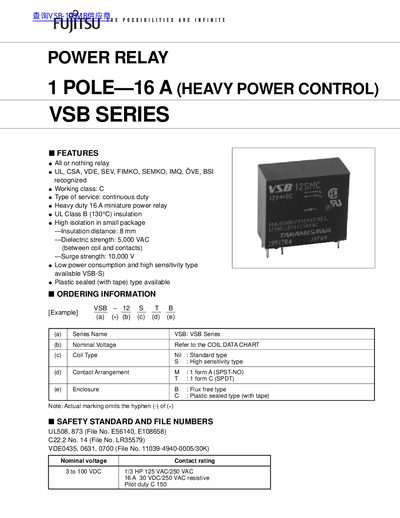

This document is a datasheet for the Fujitsu VSB Series power relays, designed for heavy power control applications with a 16A rating. The relays are available in standard and high sensitivity types, with various contact arrangements including 1 form A (SPST-NO) and 1 form C (SPDT). They feature silver alloy contacts and are rated for continuous duty service.
| Contact Rating (Resistive) | 16 A 250 VAC/30 VDC |
|---|---|
| Maximum Carrying Current | 16A |
| Maximum Switching Power | 4,000 VA, 480 W |
| Dielectric Strength (Coil to Contacts) | 5,000 VAC |
| Surge Strength | 10,000 V |
| Mechanical Life | 2 x 10^7 operations |
| Weight | Approximately 18 g |
The VSB series offers 1 form A (SPST-NO) or 1 form C (SPDT) contact arrangements.
The standard type operates between -40°C and +65°C (no frost).
