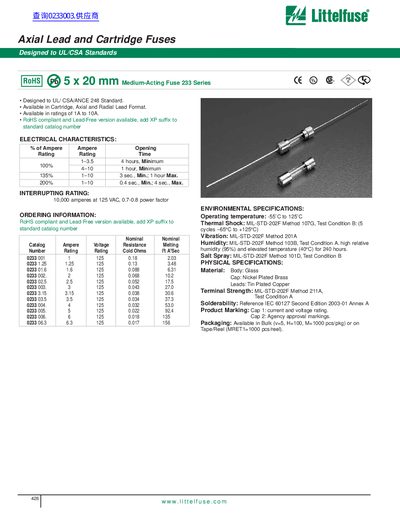

Littelfuse 233 Series Axial Lead and Cartridge Fuses Datasheet

233 series medium-acting fuses, UL/ CSA/ANCE 248 standard, rated current 1-10A, RoHS and Lead-Free version available

Brand: Littelfuse
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 2
File format: PDF
File size: 131 KB
Published: 11 June, 2012
Updated: 30 September, 2023
MD5 checksum: FBC5B085D59CCC9BCA86FC75AB68ED2A
PDF: Littelfuse 233 Series Axial Lead and Cartridge Fuses Datasheet PDF

About this manual

This document provides technical data for the Littelfuse 233 Series Axial Lead and Cartridge Fuses. The fuses are designed to UL/CSA standards and are available in ratings from 1A to 10A with interrupting ratings up to 10,000 amperes at 125 VAC.

What's inside

Electrical Characteristics
Interrupting Rating
Ordering Information
Environmental Specifications
Physical Specifications
Agency Approvals

Specifications

Ampere Rating Range	1A to 10A
Interrupting Rating	10,000 amperes at 125 VAC
Operating Temperature	-55°C to 125°C
Body Material	Glass
Cap Material	Nickel Plated Brass

Frequently asked questions

What is the interrupting rating of the Littelfuse 233 Series fuses?

The fuses have an interrupting rating of 10,000 amperes at 125 VAC with a 0.7-0.8 power factor.

What are the operating temperature limits for these fuses?

The fuses operate within a temperature range of -55°C to 125°C.
