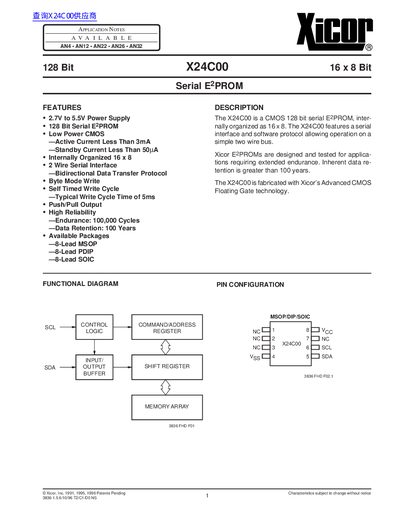

X24C00 is a 128 bit serial E2PROM from Xicor, internally organized as 16 x 8. The device features a serial interface and software protocol allowing operation on a simple two wire bus. Xicor E2PROMs are designed and tested for applications requiring extended endurance. Inherent data retention is greater than 100 years. The X24C00 is fabricated with Xicor's Advanced CMOS Floating Gate technology.
The document describes the Xicor X24C00, a 128-bit (16 x 8) Serial E2PROM designed for applications requiring extended endurance. It features a low-power CMOS design with active current less than 3mA and standby current less than 50uA. The device operates on a simple two-wire bus using a bidirectional data transfer protocol.
| Memory Capacity | 128 Bit (16 x 8) |
|---|---|
| Supply Voltage Range | 2.7V to 5.5V |
| Active Current | Less Than 3mA |
| Standby Current (at 5V) | Less Than 100uA |
| Endurance | 100,000 Cycles |
| Data Retention | 100 Years |
| Write Cycle Time | 5ms |
| Clock Frequency | 1 MHz |
| Operating Temperature (Commercial) | 0°C to +70°C |
The device is internally organized as 16 x 8 bits.
The X24C00 features a two wire serial interface.
The typical write cycle time is 5ms.
