256K MPS µPort Saver EEPROM is a high-performance EEPROM launched by Xicor. It features 25ns read time, 10MHz data transfer rate, low power consumption and small package.

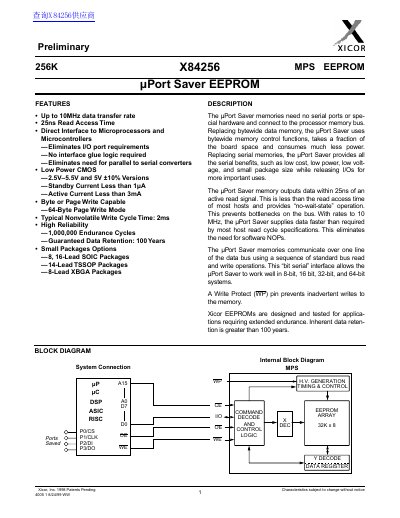

The Xicor X84256 is a 256K MPS EEPROM designed for direct interface with microprocessors and microcontrollers. It eliminates the need for I/O ports, interface glue logic, or parallel-to-serial converters, thereby saving board space and power. The device supports data transfer rates up to 10MHz with a read access time of 25ns, enabling no-wait-state operation for most host systems.
| Data Transfer Rate | Up to 10MHz |
|---|---|
| Read Access Time | 25ns |
| Memory Capacity | 256K |
| Endurance Cycles | 1,000,000 |
| Data Retention | 100 Years |
| Supply Voltage (Standard) | 5V ±10% |
| Supply Voltage (Extended) | 2.5V to 5.5V |
| Supply Voltage (Low Power) | 1.8V to 3.6V |
| Standby Current | Less than 1µA |
| Active Current | Less than 3mA |
| Package Options | 8, 16-Lead SOIC; 14-Lead TSSOP; 8-Lead XBGA |
The device has a read access time of 25ns.
No, it eliminates the need for interface glue logic and parallel to serial converters.
The maximum data transfer rate is up to 10MHz.
The device guarantees data retention for 100 years.
