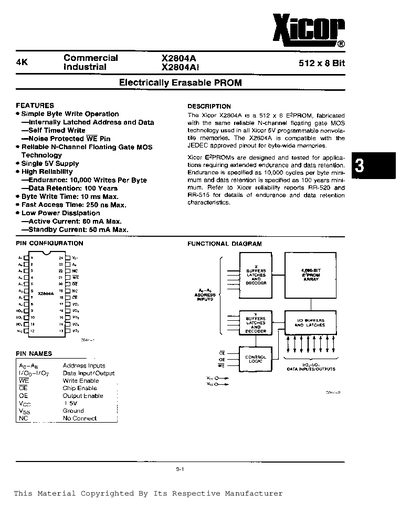

The X2804A is a 512 × 8‑bit E2PROM fabricated with Xicor’s N‑channel floating‑gate MOS technology. It offers simple byte‑write operation, self‑timed writes, and noise‑protected write enable. The device operates from a single 5 V supply and provides high reliability with 10 000 write cycles per byte and a data‑retention guarantee of 100 years.
Key electrical characteristics include an active current of up to 80 mA, standby current of 50 mA, a maximum byte‑write time of 10 ms, and a fast access time of 250 ns. The part supports a two‑line control architecture (CE and OE) for read/write operations and includes write‑protect features such as noise protection, Vcc sense, and write‑inhibit control.
| Memory Size | 512 × 8 bits |
|---|---|
| Supply Voltage | 5 V |
| Active Current (max) | 80 mA |
| Standby Current (max) | 50 mA |
| Endurance | 10 000 writes/byte |
| Data Retention | 100 years |
| Byte Write Time (max) | 10 ms |
| Access Time (max) | 250 ns |
| Operating Temperature (X2804A) | 0 °C to +70 °C |
| Input/Output Capacitance | 10 pF |
The X2804A is specified for up to 10 000 write cycles per byte.
A byte write operation completes in up to 10 ms.
The device guarantees a data retention of 100 years.
Active current is up to 80 mA and standby current is up to 50 mA.
