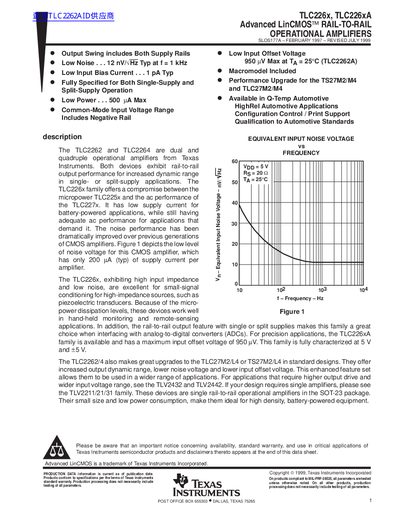

This datasheet introduces the Texas Instruments TLC2262 and TLC2264 dual and quadruple operational amplifiers. These devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications.
The TLC226x family includes dual (TLC2262) and quadruple (TLC2264) operational amplifiers designed for both single-supply and split-supply applications. These devices exhibit rail-to-rail output performance to increase dynamic range, making them suitable for interfacing with analog-to-digital converters (ADCs). The family offers a balance between the low power of the TLC225x series and the high AC performance of the TLC227x series.
The document provides comprehensive electrical characteristics, including input offset voltage, noise voltage, bias current, and output swing specifications. It also lists available package options such as DIP, SOIC, TSSOP, and ceramic packages, along with absolute maximum ratings and recommended operating conditions for various temperature ranges.
| Input Bias Current | < 1 pA |
|---|
