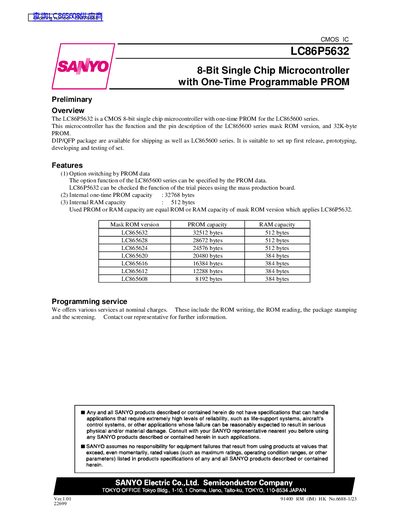

LC86P5632 is a CMOS 8-bit single chip microcontroller with one-time PROM for the LC865600 series. This microcontroller has the function and the pin description of the LC865600 series mask ROM version, and 32K-byte PROM. DIP/QFP package are available for shipping as well as LC865600 series. It is suitable to set up first release, prototyping, developing and testing of set.
The Sanyo LC86P5632 is a CMOS 8-bit single chip microcontroller designed for the LC865600 series. It features an internal one-time programmable PROM capacity of 32,768 bytes and 512 bytes of internal RAM. The device is available in DIP64S and QFP64E packages and is suitable for first releases, prototyping, and testing.
| Internal PROM capacity | 32,768 bytes |
|---|---|
| Internal RAM capacity | 512 bytes |
| Available packages | DIP64S, QFP64E |
The LC86P5632 executes the program from 00H of the program counter immediately after going to a 'H' level to the reset terminal, whereas the LC865600 series waits 3ms.
Recommended programmers include Advantest R4945, R4944, R4943, Andou AF-9704, AVAL PKW-1100, PRW-3000, and Minato electronics MODEL 1890A.
The option data area is addressed from 7FOOH to 7FFFH in the program memory.
