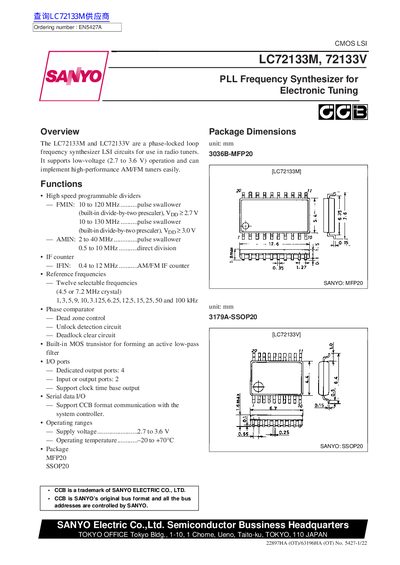

LC72133M, 72133V are phase-locked loop frequency synthesizer LSI circuits for use in radio tuners. It supports low-voltage (2.7 to 3.6 V) operation and can implement high-performance AM/FM tuners easily.
The LC72133M and LC72133V are low-voltage (2.7 to 3.6 V) phase-locked loop frequency synthesizer LSI circuits designed for use in AM/FM radio tuners. They support high-performance tuning with built-in MOS transistors for active low-pass filters and dedicated I/O ports using the CCB serial bus format.
| Supply voltage | 2.7 to 3.6 V |
|---|---|
| Operating temperature | -20 to +70 °C |
| Storage temperature | -40 to +125 °C |
| AMIN input frequency range (SNS = 1) | 2 to 40 MHz |
| IFIN input frequency range | 0.4 to 12 MHz |
| Supported crystal frequencies | 4.5 or 7.2 MHz |
The device supports low-voltage operation from 2.7 to 3.6 V.
The LC72133M and LC72133V are available in MFP20 and SSOP20 packages.
The PD pin is the PLL charge pump output, indicating when the divided local oscillator frequency is higher or lower than the reference frequency.
